Compact Full HD camera IP & 3GSDI
Compact Full HD camera IP & 3GSDI
- Merk:
- Marshall
CV320
1920x1080p up to 60fps over 3G-SDI & IP simultaneously
Key Features
- 2.12 Megapixel 1/2.86″ FHD sensor
- Flexible interchangeable CS & C lens mount (lens sold separately)
- Simultaneous 3G-SDI & Ethernet IP video outputs
- Supports RTSP, RTMP & SRT streaming protocols
- H.264 and HEVC video codecs
- 1920×1080 up to 60P
- Audio input for embedding audio into IP video output
- I/O breakout cable with integrated OSD control joystick
- VISCA over RS485, VISCA over IP & Web GUI remote control
- Powered via included 12VDC power supply or PoE
Product Overview

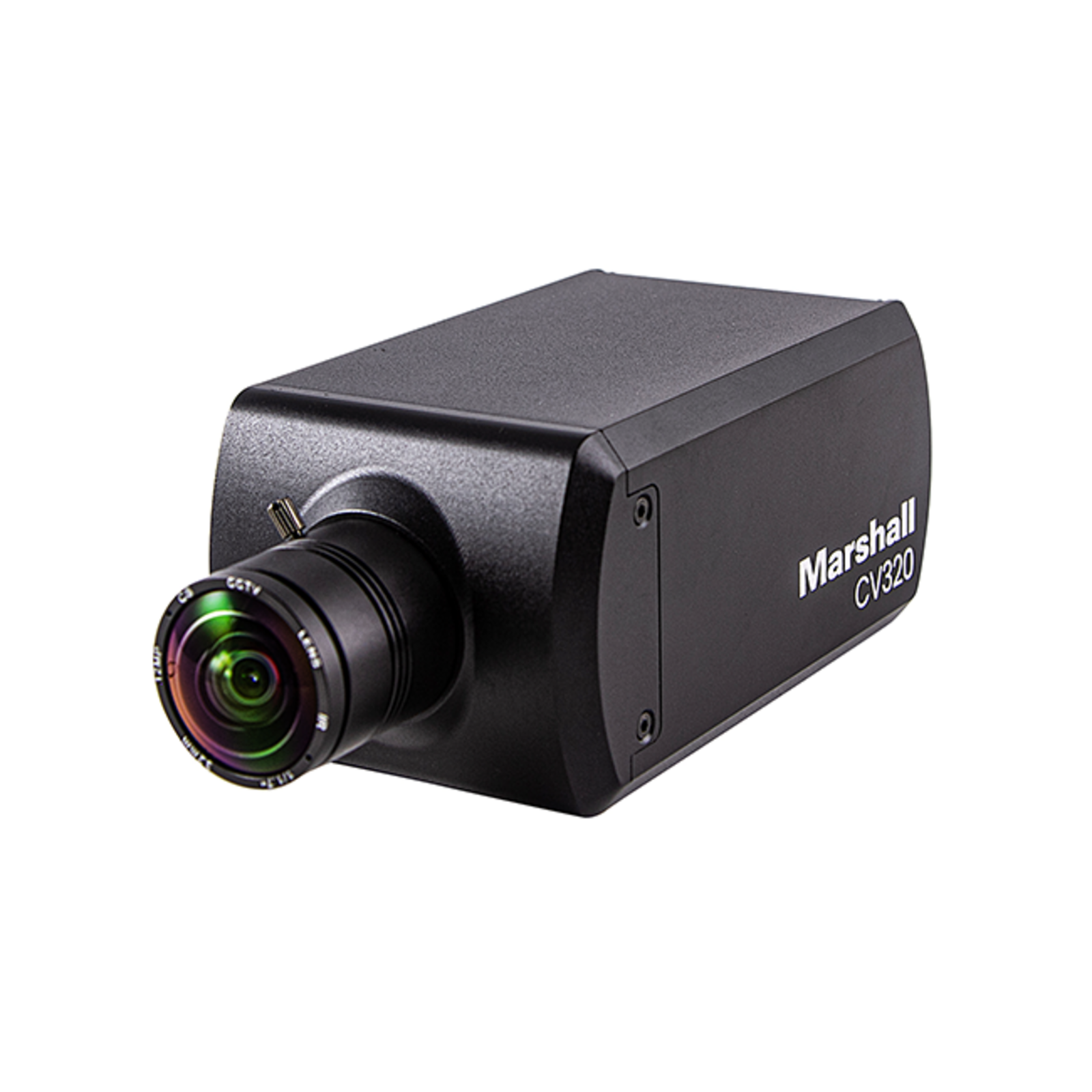

The Marshall CV320 compact network streaming POV camera is built around a HD sensor with a CS/C lens mount suitable for longer shots. The compact CV320 delivers exceptional 10 bit 4:2:2 HD video performance via 3GSDI and ethernet IP interface supporting the ultra-efficient SRT, HEVC codecs from a durable aluminum alloy built with rear I/O protection wings. The HD sensor offers clear and rich color accurate video with improved low light sensitivity, refined remote adjust capability and flexible interchangeable CS lenses.
Featuring extremely efficient IP codecs providing low bandwidth AND low latency. This gives the CV320 camera a unique advantage while maintaining premium video quality. Simultaneous 3GSDI output and other streaming options such as SRT, RTSP, RTMP, HEVC and more.

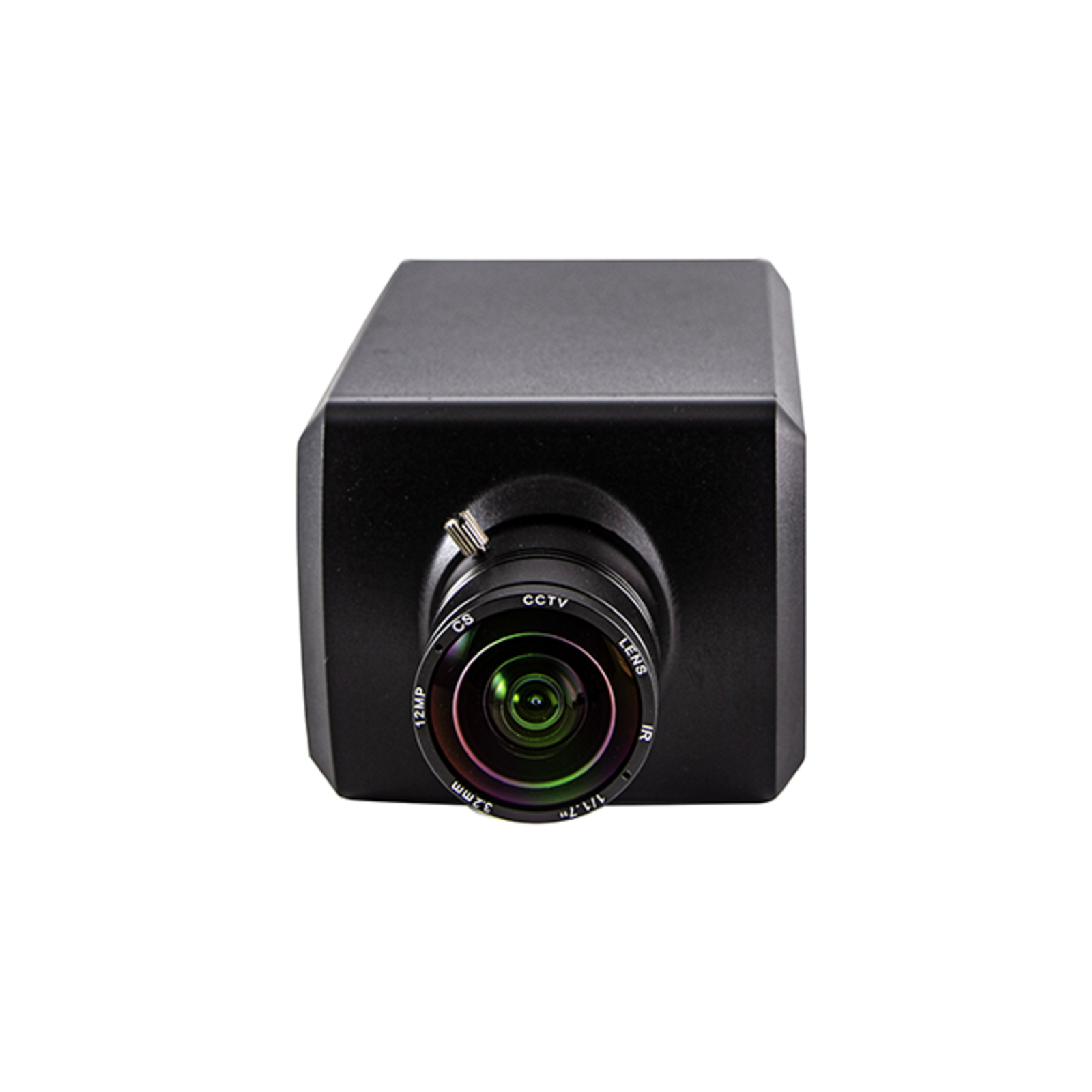

The CV320 features a flexible interchangeable CS/C lens mount with DC Iris power connector, allowing users to choose from a wide range of Marshall CS and C mount prime and varifocal lenses. This makes the camera ideal for applications requiring longer throw distances and telephoto lenses.

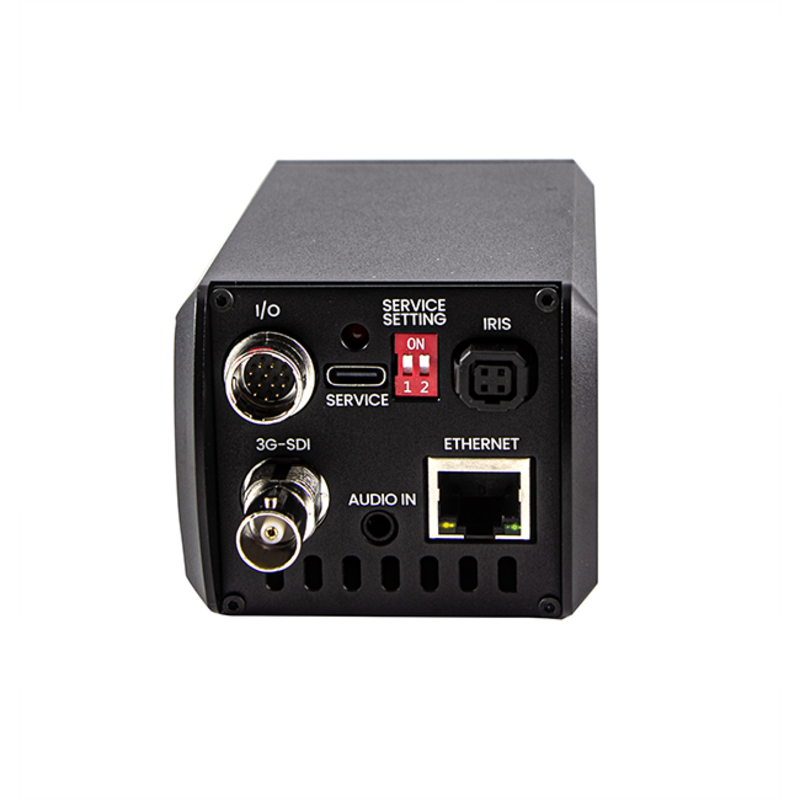

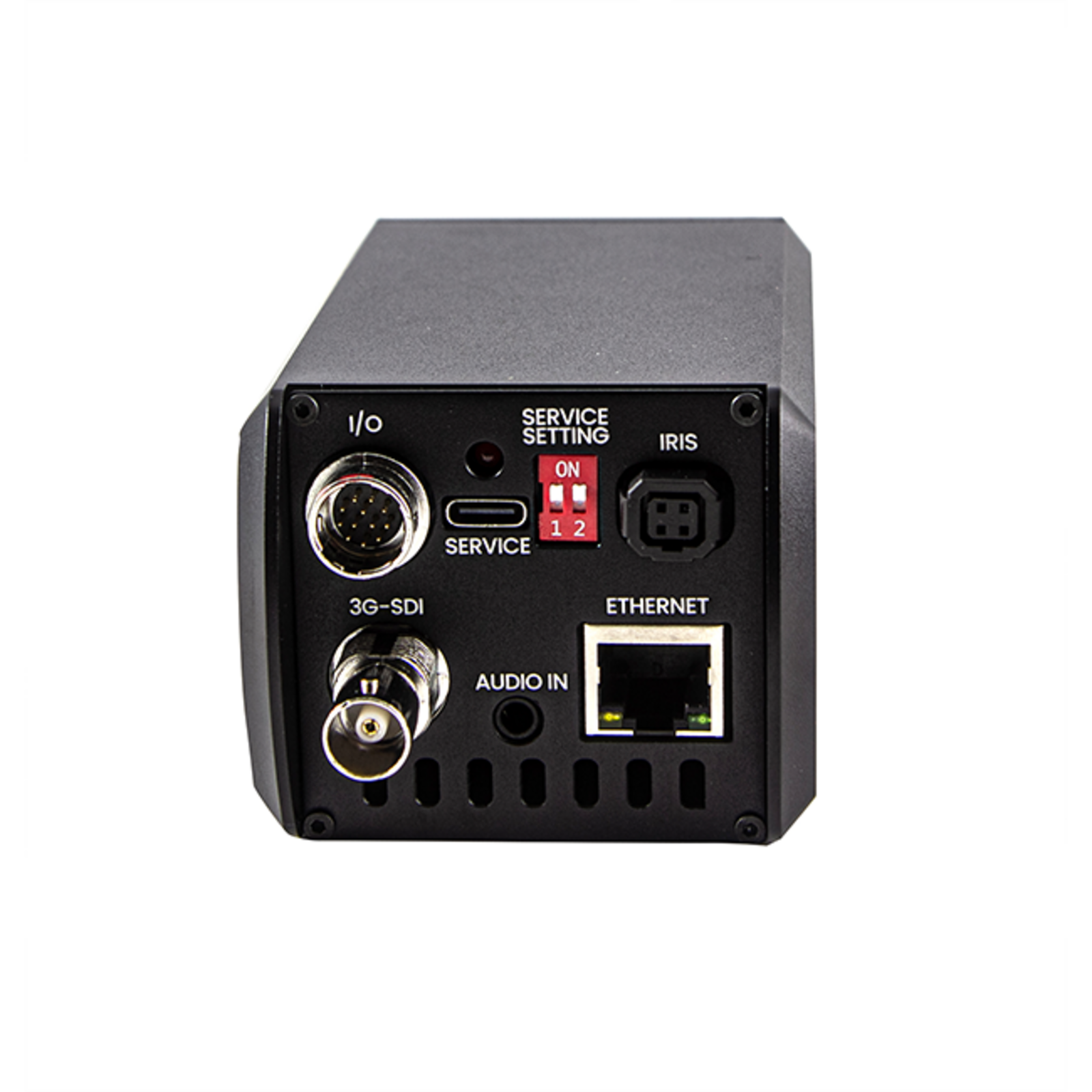

Machined from a solid block of aluminum alloy, the compact CV320 is built for durability while maintaining a discreet footprint with protected rear I/O. The included breakout cable provides audio input, power and an integrated joystick for quick access to on-screen menus. Remote camera adjustment and image matching are available through VISCA over RS485, VISCA over IP or the intuitive web-based GUI. The camera can be powered using the included 12VDC power supply or via PoE over a single CAT cable for simplified installation.
The Compact CV320 is suitable for use in AV over IP or 3GSDI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship and many more.
Specifications:
| Sensor | |
| Image Sensor | 1/2.86” Progressive CMOS (Approx. 2.12 megapixels) |
| Scanning System | 16:9 Progressive |
| Sync. System | Internal |
| Effective Pixel | 1920(H) x 1080(V) |
| Min. Illumination | 0.01Lux (Day), 0.005Lux (Night) |
| Optics | |
| Lens | CS Mount Compatible (Lens purchased separately) |
| Functions | |
| Back Light Compensation | WDR, BLC |
| Exposure | Auto / Manual |
| White Balance | AUTO / Manual / Indoor / Outdoor / One Push / AUTO Tracking(ATW) |
| Day & Night System | Day / Night:TDN(ICR) |
| Electronic Shutter | 1/30~1/10000 |
| Functions | Image Mirror/Flip, 2D+3DNR, Anti Flicker |
| Ethernet | |
| IP Protocols | SRT, RTMP, RTSP |
| Video Encode Format | H.264 / H.265 (Note: RTMP supports only H.264) |
| Video Output | |
| Interfaces | 3G-SDI, Ethernet |
| Output Resolutions (IP) | 1080p25/29.97/30/50/59.94/60, 720p25/29.97/30/50/59.94/60 |
| Output Resolutions (3G-SDI) | 1080p23.98/24/25/29.97/30/50/59.94/60, 1080i50/59.94/60, 720p25/29.97/30/50/59.94/60 |
| Audio Input | |
| Line Level | 22.05kHz, 44.1kHz sample rates |
| Control | |
| Network | Web GUI / VISCA over IP |
| Terminal Block | VISCA over RS485 |
| General | |
| Operation Temperature | 0°C ~ 50°C |
| Power Input | 12VDC (10V to 13.5VDC) |
| Power Consumption | 12VDC: 3.12W, POE: TBD |
| Dimensions | 113.54mm(L) x 64mm(W) x 53mm(H) (without lens) |
| Weight | 0.85 lbs (without lens) |
What's in the box?
- 1x Marshall CV320 Camera Body
- 1x Camera Breakout Cable
- 1x Power Supply Unit (PSU)
