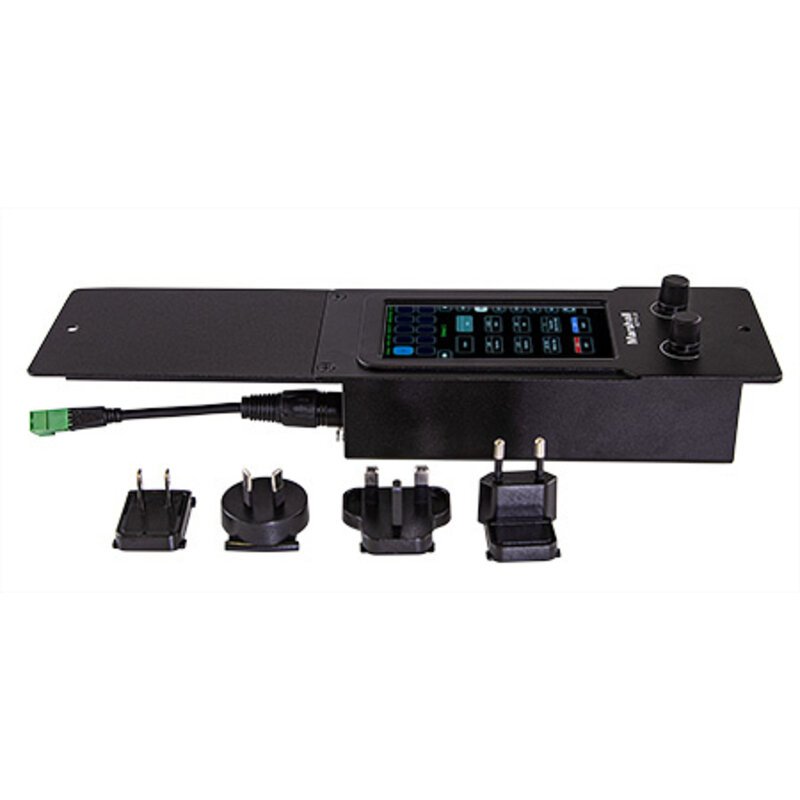

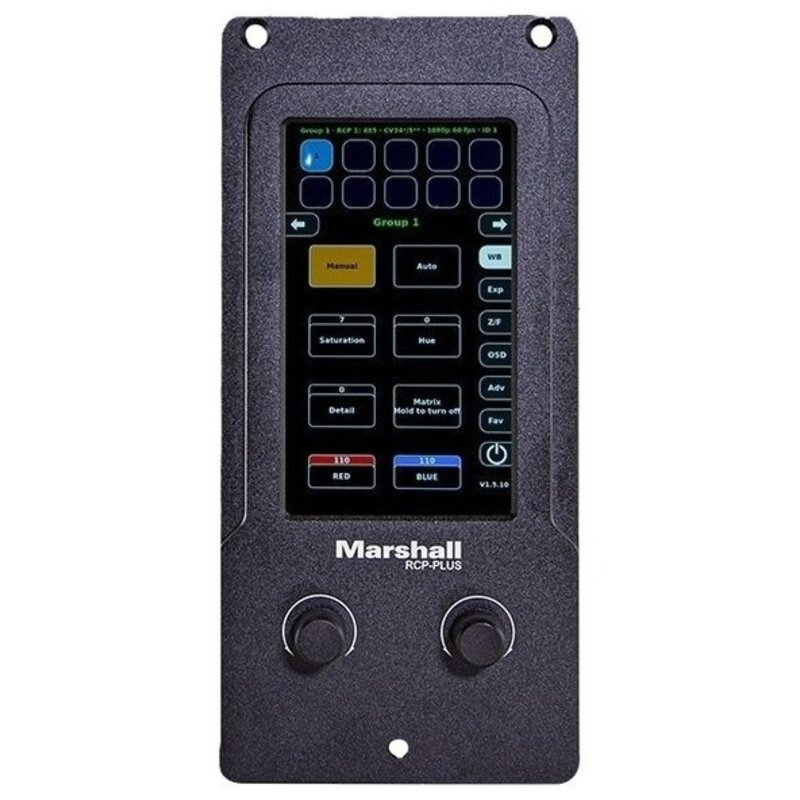

The new RCP-PLUS has an intelligent menu touchscreen interface system that can connect VISCA over IP, Visca over RS485 and powered by PoE or 12VDC. This unit can also have favorites settings and save features for easy usability. The fine-tuned finger dials enable precise adjustments for white balance, red/blue gain, gamma, black level, brightness, exposure, iris, shutter, resolution, frame rate, and more, and they can be adjusted simultaneously or one at a time. The RCP-PLUS comes pre-programmed with control protocols for all Marshall Cameras, including Marshall's POV cameras, varifocal cameras, zoom cameras, PTZ cameras, and other popular non-Marshall branded cameras on the market.

The 5-inch Touchscreen RCP Camera Control unit allows for remote operation of up to seven broadcast cameras at up to 300m (1,000 foot) distance over common XLR cable, and it features a new intuitive touchscreen control with user-friendly, fine-tune adjustment dials for quick changes on the fly.

• Seven cameras are select-able from ALL screen menus with intuitive navigation layout.
• Global or individual camera adjustment capability without OSD (On-screen Display) Menu appearing on video stream.
• Adjust Red/Blue, Pedestal (Black-levels), Brightness (AE Offset), Gain, Gamma, Iris, Shutter, Saturation, Hue, Optical/Digital Zoom, Pan-Tilt, Focus, and more.
• Rugged machined aluminum enclosure provides durability while a larger 5-inch screen provides easier access to digital buttons.
• Easy access USB port for field up-gradable firmware
• Red and Blue adjustment follows every screen menu with optional Favorites Menu to save important controls to specific events for easy access.
• Low power consumption requires 12V power at less than 12W (AC or battery packs).

Specifications:
